Success Precision Engineering Co., Limited
EQUIPMENT
Summary
Below is some main equipment from Success Precision and we’ll be keeping updating equipment investment at different stages. Thus, if you need unique custom made machining service, just send us your samples or drawings in any style ( PDF, JPG, AutoCad, Solidworks, Pro/E and so on).
Equipment list
| Type of machine | Brand | Number of machines | Travel (mm) | Max sizes processed by machines (mm) | ||
| X | Y | Z | ||||
| 3 Axis CNC Milling Machines | JoYou | 1 | 800 | 490 | 500 | 780*470*400 |
| Youke | 1 | 1000 | 550 | 550 | 980*530*400 | |
| Derwa | 2 | 800 | 500 | 500 | 780*480*400 | |
| Derwa | 1 | 1165 | 600 | 550 | 1145*580*450 | |
| FEELER (Taiwan) | 3 | 575 | 400 | 400 | 555*380*300 | |
| FEELER (Taiwan) | 4 | 800 | 500 | 500 | 780*480*400 | |
| HAAS (USA) | 1 | 750 | 400 | 400 | 730*380*300 | |
| LiTZ (Taiwan) | 2 | 450 | 350 | 400 | 430*330*300 | |

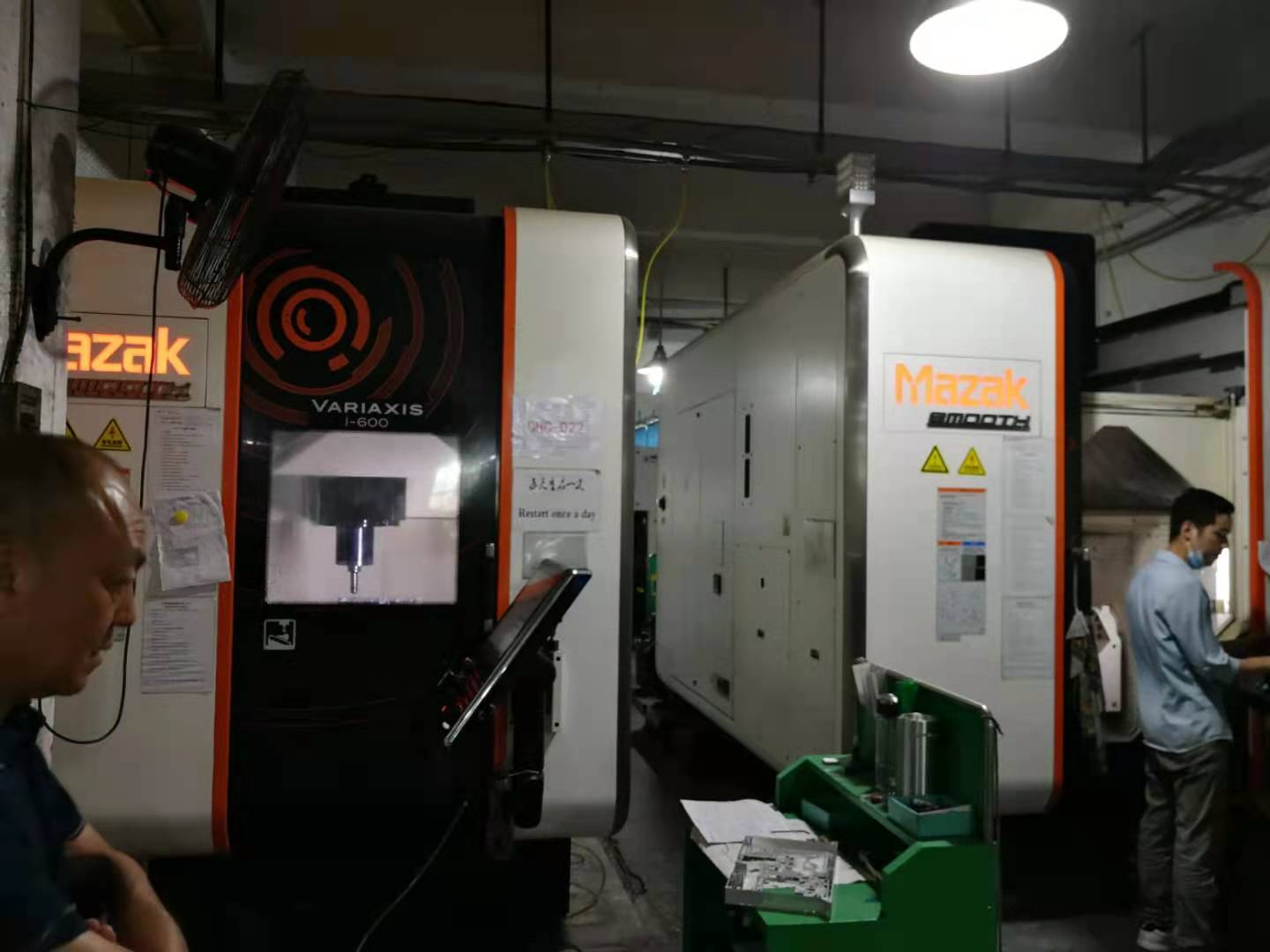

| Mazak (Japan) | 1 | 1400 | 650 | 650 | 1380*640*550 | |
| 5 Axis CNC Milling Machines | HAAS (USA) | 2 | 750 | 400 | 400 | 730*380*300 |
| 3+1 Axis / Vertical 4 Axis (CNC Milling Machines) | Derwa | 1 | 800 | 500 | 500 | 780*480*400 |
| LiTZ (Taiwan) | 1 | 450 | 350 | 400 | 430*320*300 | |
| Conventional milling Machines | Joint | 6 | 500 | 150 | 350 | 500*150*350 |
| Conventional milling Machines | FengBao | 1 | 500 | 150 | 350 | 500*150*350 |
| Grinding Machines | HyFair | 2 | 380 | 155 | 240 | 380*155*240 |
| Type of machine | Brand | Number of machines | Travel (mm) | Type / size of part/max cutting size(mm) | ||
| X | Y | |||||
| W/C Machines | Taizhou | 9 | 450 | 550 | 400*500/200 | |
| W/C Machines | 1 | 400 | 500 | 350*450/200 | ||
| W/C Machines | 1 | 500 | 800 | 450*750/200 | ||
| W/C Machines | 1 | 450 | 550 | 400*500/300 | ||
| W/C Machines | 1 | 450 | 550 | 400*500/280 | ||
| Type of machine | Brand | Number of machines | Travel(mm) | Type / size of part(mm) | ||
| X | Z | |||||
| CNC turning | TSUGAMI (Japan) | 1 | 320 | 330 | Φ250 | |
| CNC turning | STS | 1 | 330 | 500 | Φ250 | |
| Conventional Turning | GSK C6132A1 | 1 | 350 | 750 | Φ400(length 750) | |
| Conventional Turning | Baoji C56150B | 1 | 500 | 1500 | Φ500(length 1450) | |
| Type of machine | Brand | Number of machines | Max tapping capacity | |||
| (mm) | ||||||
| Tapping / deburing | WEST LAKE | 1 | 5mm/6mm | |||
| Tapping / deburing | WEST LAKE | 1 | 8mm/12mm | |||
| Tapping / deburing | WDDM | 1 | 20mm | |||
| Type of machine | Brand | Number of machines | Measurement accuracy(mm) | size of part(mm) | ||
| CMM | Hexagon | 1 | 0.002 | 1000*800*600 | ||
| Height Gauge | Tesa (Switzerland) | 2 | 0.002 | 600(h) | ||
| Optical Projector | DULIANG | 1 | 0.005 | 300*200*200 | ||
