| Success Precision Engineering Co., Limited Machining Accuracy (Unit: mm) | |||||||||

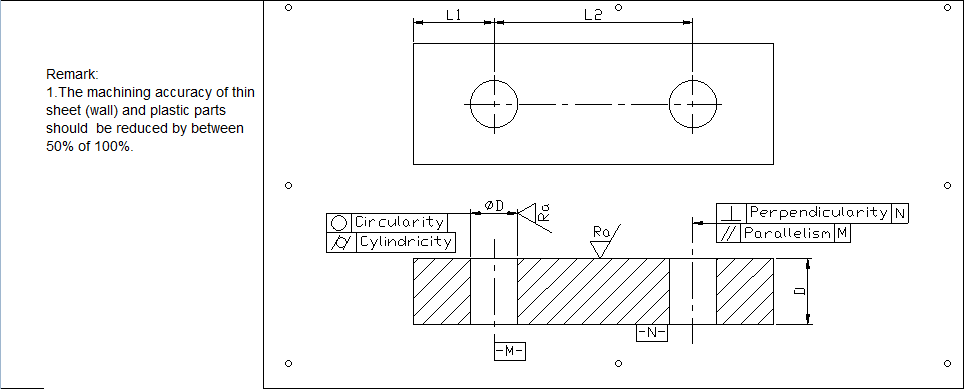

| Item | Machining Process | Working Range & Table Loading | Machining Accuracy (Unit: mm) | Circularity (Hole Ø 2~50mm) | Tolerance of hole distance size L1 or L2 (L1 or L2≤75mm) | Hole's axis perpendicularity (Hole depth D≤15mm) | Hole's axis Parallelism (Hole depth D≤15mm) | Surface roughness Ra(μm) | |
| Range (XxYxZ)mm | Weight (Kg) | ||||||||
| 1 | Milling | 1050X560X450 | 700 | ≥ ± 0.01 | 0.01~0.03 | ≥ ± 0.02 | 0.01~0.03 | 0.01~0.03 | 1.6~3.2 |
| 2 | High Speed Milling | 710X560X500 | 400 | ≥ ± 0.005 | 0.008~0.02 | ≥ ± 0.01 | 0.008~0.02 | 0.008~0.02 | 0.8~1.6 |
| 3 | Wire-Cutting | "350X250X250 0~300conicity cut" | 200 | ≥ ± 0.0025 | 0.0025~0.005 | ≥ ± 0.0025 | 0.0025~0.005 | 0.0025~0.005 | 0.2~0.4 |
| 4 | EDM | "350X250X250 C Axis 0~360° Rotation" | 200 | ≥ ± 0.0025 | 0.0025~0.005 | ≥ ± 0.0025 | 0.0025~0.005 | 0.0025~0.005 | 0.2~0.4 |
| 5 | Grinding | "Max Ø 260 thickness 45 Min Ø 0.5 thickness 3" | ≥ ± 0.0015 | 0.002~0.005 | 0.002~0.005 | ≥ ± 0.0025 | 0.002~0.005 | 0.002~0.005 | 0.1~0.2 |
